Capacity(kVA) |
Dimension(mm) |
Weight(kg) |
Back up Battery |
||
Width |
Depth |
Height |
|||
30kVA |
433 |
1045 |
1597 |
580 |
PXR 10020 STANDARD형사용시 UPS동일 사이즈 |
40kVA |
433 |
1045 |
1597 |
600 |
|

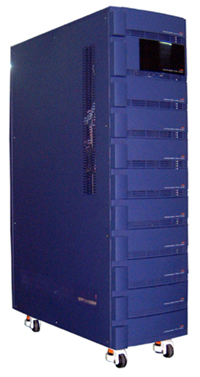

| MODEL | i UPS C.V 2000 |
| Power Capacity(kVA) | 30-40 |
| Battery type | Lead-acid maintenance free & user's optional |
| Recharge time(normal) | 1-3 hours |
| Extended Battery Option | Yes |
| Topology | Full True on-line C.V.C.F |
| Input Specification | |
| Norminal output voltage | 3 Phase 208/220/380/440 |
| Norminal input frequency | 50Hz or 60Hz |
| Input voltage range | 20% |
| Input frequency range | 6% |
Output Specification |
|
| Nominal output voltage | 1 Phase 208/220/240 |
| Output voltage regulation | 1% |
| Total voltage harmonic distortion | 3% at full load |
| Load crest factor supported | up to 5:1 |
| Power factor tolerance | Load with 0.5 to 1.0 poser factor |
| Efficiencyinverter at full load | 92% |
| Overload capacity | 125% 10 min |
| Feature | |
| Runtime(battery)Expandability | Yes |
| User serviceable | Yes |
| Automatic bypass | Solid state |
Indicators, interface & control |
|
| Led Display | Load level, Battery level, Input fail, Over load, Trouble, Input voltage, Output voltage, Output current, Output frequency, Battery voltage |
| Intelligent serial interface | Yes |
| Multiple server/OS Shutdown | via MultiLink |
| Others | |
| DC Characteristics | 210-270VDC |
| Bypass isolation transformer | Provides a galvanic isolation while operating on the emergency bypass line |
| Warrant | 2 years |
 |
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
|
||
|
|
||||||||||
  |
|
|||||||||
|
|
||||||||||
