MODEL
: SwitchUPS Plus 7500 Specification
|
|
|
Power
Capacity(VA) |
용량
7500(5250w) |
| Topology
방식 |
Synthetic
power Conversion UPS |
Isolation
transformer
절연변압기 |
Provides a galvanic isolation while operating on the inverter operating |
Recharge
time (normal)
충전시간 |
1~2
hours |
| Typical
transfer time with load |
2msec(Synthetic
power Conversion UPS) |
|
Input Specification
|
Nominal
input voltage and Frequency range
입력전압에 대한 일반사항 |
1
phase 200/220/230(user's require) Voltage ±20 % / Auto Frequency
50/60 HZ ±5% |
|
Output Specification
|
Nominal
output voltage
출력전압 |
1
phase 200/220/230 Dip switch selectable |
| Output
voltage regulation (AutoBoost & AutoTrim) |
자동전압기능
On line3 % |
| Output
voltage waveform 출력파형 |
Sine
wave |
| Load
crest factor supported (c.f) |
up
to 5 : 1 |
| Power
factor tolerance Loads with |
0.5
to 1.0 power factor |
| Efficiency
inverter at full load 인버터 효율 |
〉95
% |
Audible
noise
(front 1.5m away) |
40
dB 이하 |
| Overload
capacity |
Up
to 110% for 10 seconds then transfer to inverter |
| Internal
power distribution unit(PDU) |
4
plugs |
|
Feature
|
| Surge
Suppression and Noise filtering |
Yes |
User
serviceable
(SNMP Service) |
Option
(QuickSNMP & Others) |
|

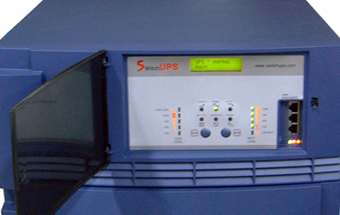

Indicators, Interface & control
|
| LED
Indicators |
Load
level(25-100%), Battery level(25-100%), AutoBoost & AutoTrim,
Inverter, Battery Abnormal, Alarm, Input voltage level(5 grade ) |
| Power
cord |
Yes |
| Intelligent
serial interface & SNMP |
Yes |
|
Others
|
| Battery
type 배터리 종류 |
ES-26Ah |
| Battery
voltage & cell |
12v
4cell (DC 48 v) |
| Individual
voltage & current monitoring |
Self
diagnostic, replace battery warning indicator |
Method
of replacement
배터리 교체 방법 |
Hand
plug compatible & hot swappable |
| Dimension |
(H*W*D) |
| Weight |
Kg |
| On
site service |
Optional |
| |
|
